New Product Release…JBR 3.5" Wide Path IAS Full Silicone Intake Systems for MAZDASPEED 3/6

[JBR]

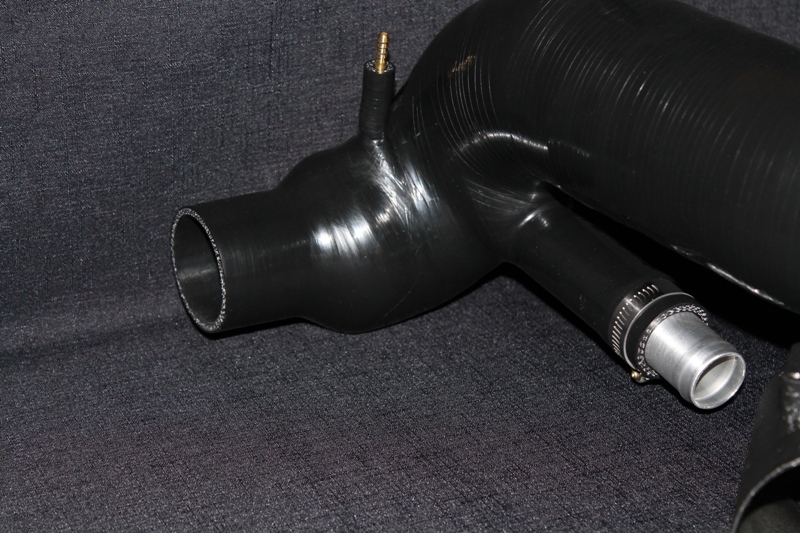

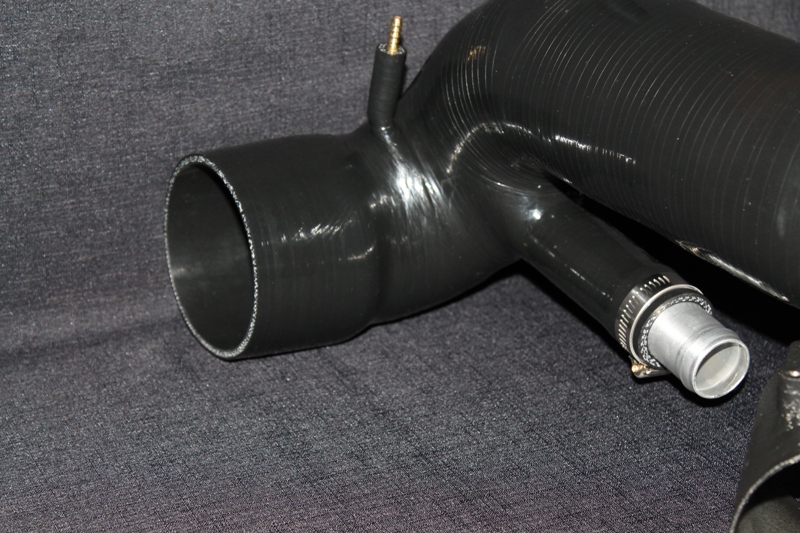

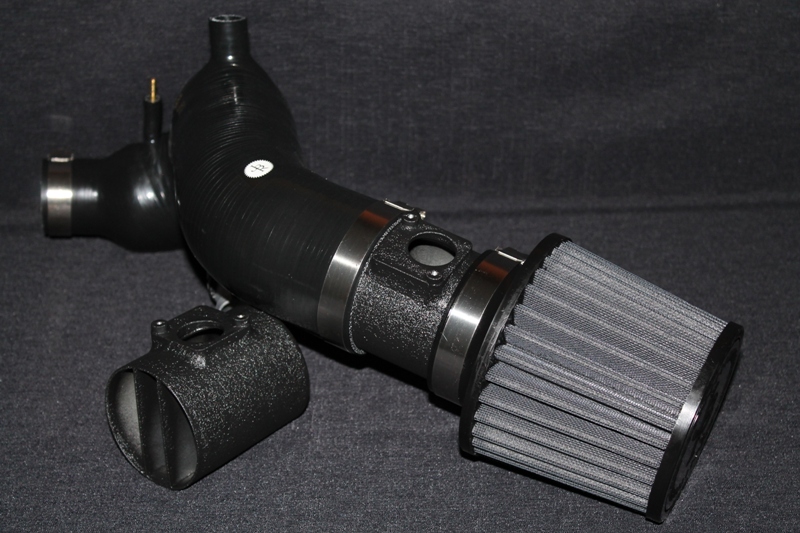

The JBR 3.5″ IAS OE Wide Path Full Intake System is the only solution for those seeking unrestricted flow to the stock OE, 2.25″ turbo inlet or the GT 4.0″ turbo inlet. The one piece design eliminates the need for unnecessary couplers and the joining of multiple sections that increases turbulence and friction which ultimately leads to reduced airflow. The thick, 5-ply, wire reinforced high temperature silicone is far superior at insulating the intake air from extreme engine temperatures. This translates in to lower boost air temperatures and more horsepower that no full aluminum intake can accomplish. The 3.5″ Wide Path OE IAS Intake is capable of flowing over 300 g/s on the stock KO4 turbo consistently at WOT with the proper tuning.

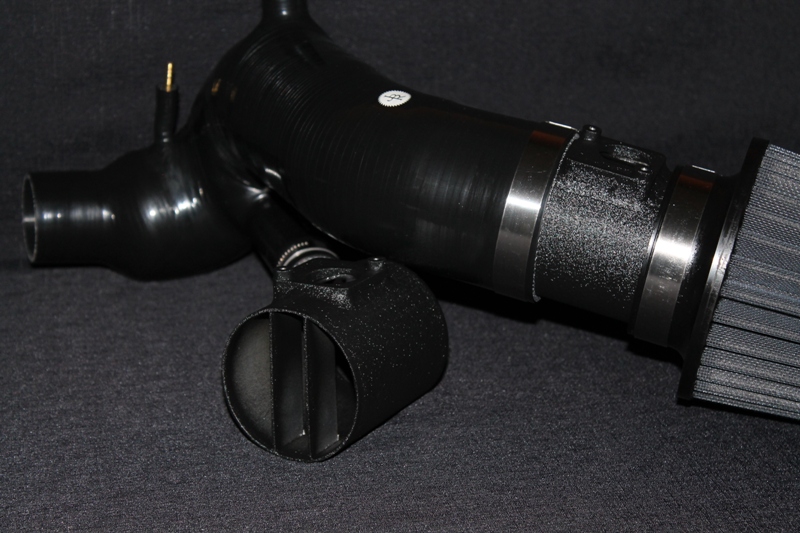

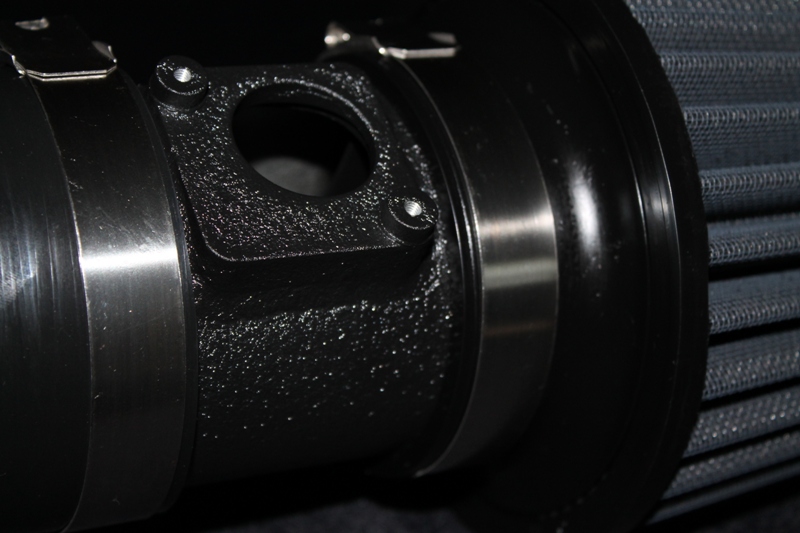

The JBR IAS MAF housing includes an OEM style Integrated Air Straightener. Our unique design has no volume or flow reducing impact like the others that use pressed in straighteners that create a lip and reduce the inside diameter of the housing. Honeycomb air straighteners, the beads rolls and sealant used to secure them, also greatly reduce the internal diameter of the MAF housing and significantly reduce the volume of air capable of passing through them. The seamless design of the JBR IAS MAF housing eliminates these performance robbing problems and provides you a smooth wide path of performance.

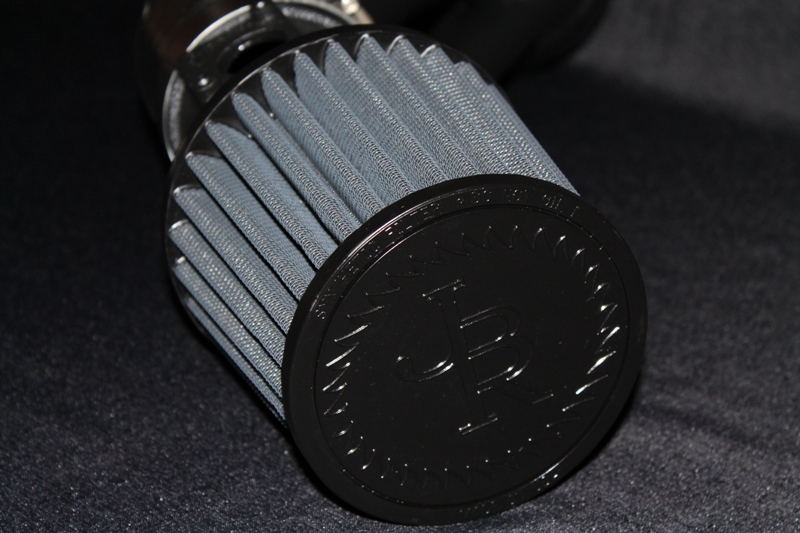

Every Wide Path IAS Intake includes a Dry-Flow air filter. JBR Dry Flow air filters flow 200% more air than the factory filter while providing superior engine protection. It uses both depth loading, capable of removing extremely fine particles (down to < 0.1 micron), and structural screen wire to enhance airflow capabilities. This design results in a performance air filter capable of increasing horsepower and torque! The three-dimensional synthetic filtering medium is washable and requires no oiling for years of trouble free service.



The Wide Path IAS Full Intake systems is designed to be run in recirc mode but includes a plug for easy conversion to non-recir mode.

Includes: Full 3.5″ OE Silicone Intake System with IAS MAF (3.380″ ID) Housing

• Stainless T-Bolt Clamps
• Plug to run in non-recirc mode
• K&N Dry-Flow Filter (Washable No Oil)
• Installation instructions are available in our support section
• Shipping is free in the US & our Hassle Free Lifetime Warranty is included

Fitment: Simple bolt on application. Uses stock mounting location for OEM Turbo. May not use OEM mounting location with all GT Turbos. Fits with the OEM and all aftermarket top mount intercoolers. Fits with all front mount intercoolers that a conventional SRI will work with.

Advanced Tuning and a small battery box are required.

The James Barone Racing 3.5″ Wide Path IAS Intake System is available in our online catalog for only $295.00 and that includes domestic shipping. For more information and to purchase, see our product list page.

[jdm_mica]

When the funds are available I will be getting this intake and selling my Cobb setup

[LumberJack]

Another great looking product from Jbr. If I wasn't already HTP 3.5" I'd think about getting one

[LatinKraze]

God Damn It! I have the 3.5 WP but want this one now. FML

[NCZ13]

Good lord.

This is now on the list.

[The Nut]

Originally Posted by jdm_mica When the funds are available I will be getting this intake and selling my Cobb setup

What ^^^he^^^^ said

[msantana101]

Is this or the 3 inch ever coming out in an all red setup like the regular intakes?


Sent from my iPhone using Tapatalk

[motherfnmonsta]

@jbaroneHey I see it on the sight but I cant purchase I thought they where going to be up for sale this weekend?

[Swinger13]

@jbarone; I am highly interested in the 3.5 inch full intake for my set up. Do you have any promo codes valid right now I can utilize? I understand there is a silicone and a hard piped version?

[superskaterxes]

holy shit how did i miss this!?!?

this is awesome!!!

[Familyguy427]

Thinking about it

Sent while eating rice

[Swinger13]

Originally Posted by superskaterxes holy shit how did i miss this!?!? this is awesome!!!

I bumped the thread so you're welcome

[The Nut]

Hey Jamie! Looking to sponsor somebody? Sorry, just trying to keep the asinign theme groovin. (Um...but if you wanted to I def volunteer!)

I didn't mean this whole thread is asinign!

[JBR]

Originally Posted by Swinger13 @jbarone; I am highly interested in the 3.5 inch full intake for my set up. Do you have any promo codes valid right now I can utilize? I understand there is a silicone and a hard piped version?

Sorry, no promo codes or sales at this time. We have discontinued the hard pipe version and replaced it with the much better performing and better fitting silicone version. Much larger volume with the silicone and a significantly less restrictive MAF than the aluminum options out there.

-Jamie

[msantana101]

I still say these should be made in colors


Sent from my iPhone using Tapatalk - now Free

[Swinger13]

Originally Posted by msantana101 I still say these should be made in colors Sent from my iPhone using Tapatalk - now Free

I want red.

[msantana101]

Originally Posted by Swinger13 I want red.

Me too...


Sent from my iPhone using Tapatalk - now Free

[Speed3in215]

Why full silicone intakes ??

[Swinger13]

Originally Posted by Speed3in215 Why full silicone intakes ??

Bigger ID if you think about it, heak soaks less, and less turbulence through one full flowing piece.

[hnda etr]

Jamie, your site says that fitment "requires a small battery box" 3.5 Wide Path Full Silicone Intake System IAS OE [MS3-WP-3.5-2] - $295.00 : James Barone Racing, Custom Fabrication

but your instructions say to just oval out the factory battery box. Can you verify which is accurate?

[Agent_Orange]

Originally Posted by Speed3in215 Why full silicone intakes ??

Originally Posted by jbarone Sorry, no promo codes or sales at this time. We have discontinued the hard pipe version and replaced it with the much better performing and better fitting silicone version. Much larger volume with the silicone and a significantly less restrictive MAF than the aluminum options out there. -Jamie

Y u no read?

[motherfnmonsta]

loving my WP intake on my car

[happykat]

@jbarone: is there an option for a inlet reducer on 4 in inlet to the stock turbo?

[NCspecV81]

waiting for a full 3".

[motherfnmonsta]

Originally Posted by NCspecV81 waiting for a full 3".

that's what she says right

[Swinger13]

Originally Posted by happykat @jbarone; is there an option for a inlet reducer on 4 in inlet to the stock turbo?

Fixed

[happykat]

Thanks

[Swinger13]

Originally Posted by happykat Thanks

Semi-colon after the username

[hnda etr]

Originally Posted by happykat @jbarone; Is there an option for an inlet reducer on a 4 in. inlet to the stock turbo?

Fixed moar better.

Grammar FTW

[Swinger13]

Originally Posted by happykat @jbarone: is there an option for a inlet reducer on 4 in inlet to the stock turbo?

Also, you don't need a 4 inch inlet or intake for a stock turbo lol. 3.5 inch is still far too much for a stock turbo as 3.5 inch intake flows more than anyone has done on the mazdaspeed platform other than the one 700 hp I've heard of on this forum, a 4" intake is sufficient enough for 700+ WHP. Save the engine bay room and go with 3"

[hnda etr]

Originally Posted by Swinger13 Also, you don't need a 4 inch inlet or intake for a stock turbo lol. 3.5 inch is still far too much for a stock turbo as 3.5 inch intake flows more than anyone has done on the mazdaspeed platform other than the one 700 hp I've heard of on this forum, a 4" intake is sufficient enough for 700+ WHP. Save the engine bay room and go with 3"

Good information.. do you have any links to how you calculate max hp per intake diameter? Also, we refer to the piping by their outer diameter, but it's really the inner diameter that matters, so how does that affect your figures?

[Swinger13]

Originally Posted by hnda etr Good information.. do you have any links to how you calculate max hp per intake diameter? Also, we refer to the piping by their outer diameter, but it's really the inner diameter that matters, so how does that affect your figures?

The calculations I don't know but if you pay attention to datalogs and watch mass air flow and MAF voltages with the intake being used and the power that is being made you can make an educated guess on what size intake you need, or more importantly MAF housing inner diameter. just remember the MAF sensor hits fuel cut at 4.9 volts so a properly calibrated MAF sensor will cut there if you're MAF housing is too small.

So right now if you pay attention to my sig my uncorrected power is there and depending on the temperature I do hit fuel cut because my MAF housing is basically stock (around 2.6-2.7" id) so a stockish MAF housing will cut around that power level and about 330-340 g/s of air. (the same datalog I posted my power numbers with) and the MAF voltage is right near fuel cut. So if you see my datalog and pay attention to the MAF parameters you can make the conclusion that a stock MAF housing/i take diameter can make roughly 310-320 whp at it's peak.

[JBR]

Originally Posted by hnda etr Jamie, your site says that fitment "requires a small battery box" 3.5 Wide Path Full Silicone Intake System IAS OE [MS3-WP-3.5-2] - $295.00 : James Barone Racing, Custom Fabrication but your instructions say to just oval out the factory battery box. Can you verify which is accurate?

The 3" may require the holes in the bottom of the battery box to be ovaled out. The 3.5" needs the small tray to fit. The instructions are universal-ish.

[hnda etr]

Originally Posted by Swinger13 The calculations I don't know but if you pay attention to datalogs and watch mass air flow and MAF voltages with the intake being used and the power that is being made you can make an educated guess on what size intake you need, or more importantly MAF housing inner diameter. just remember the MAF sensor hits fuel cut at 4.9 volts so a properly calibrated MAF sensor will cut there if you're MAF housing is too small. So right now if you pay attention to my sig my uncorrected power is there and depending on the temperature I do hit fuel cut because my MAF housing is basically stock (around 2.6-2.7" id) so a stockish MAF housing will cut around that power level and about 330-340 g/s of air. (the same datalog I posted my power numbers with) and the MAF voltage is right near fuel cut. So if you see my datalog and pay attention to the MAF parameters you can make the conclusion that a stock MAF housing/i take diameter can make roughly 310-320 whp at it's peak.

So what do you guess a 3" intake will support HP wise? If stock size intake maxes out around 320hp, and 3.5" supports up to 700ish HP... 4" supports 700+ HP.. what does 3" support?

[Swinger13]

Originally Posted by hnda etr So what do you guess a 3" intake will support HP wise? If stock size intake maxes out around 320hp, and 3.5" supports up to 700ish HP... 4" supports 700+ HP.. what does 3" support?

It'll be enough for stock turbo.....

otherwise, search and learn. All the information is on this forum site, just dig for it. I gave my 2 cents, find the other 98 pennies.

[aviator79]

So is anyone running this?
Im a bit confused about the MAF air straiteners. Says they are pressed in in his SRI, but in this one he says the press fit takes up room. What is the difference?

[Swinger13]

Originally Posted by aviator79 So is anyone running this? Im a bit confused about the MAF air straiteners. Says they are pressed in in his SRI, but in this one he says the press fit takes up room. What is the difference?

The air straigtener is high quality. Seamless around the straighteners where it meets with the wall of the MAF housing. Honeycomb has this issue to a small degree. MAF readings are stable as well...

[aviator79]

Well I ordered the 3". Swapping out my speedie6 TIP and CPE CAI as the CAI rubbed thru my AC line due to putting in my Synapse in CPE FMIC and it was just too tight in there. This should solve that and clean things up. Will be a good match for BNR too I think.

[shadesofgray19]

Originally Posted by aviator79 Well I ordered the 3". Swapping out my speedie6 TIP and CPE CAI as the CAI rubbed thru my AC line due to putting in my Synapse in CPE FMIC and it was just too tight in there. This should solve that and clean things up. Will be a good match for BNR too I think.

I've been afraid to buy any of these larger intakes, JBR or HTP, because I don't think they fit with the CPE FMIC. I'm imagining that it would rub or not even fit because of the hot pipe location for the FMIC. Let us know if or how it fits, pictures pwease.

[aviator79]

IDK, I figured it would fit. I thought it said it would fit with any standard FMIC such as not a home built. THe hot pipe goes up over the IM then to right and down so dont see where it would get in the way.
Will let you know on here.

I know the BNR is slightly larder than stock but didnt think it was 3". I know someone had to dremel down the ID somewhat to get it to fit on the BNR. I figured I would use a heat gun and a lot of yealling. Maybe find something just larder diameter than it to streach it a bit right before I put it on...first need to get a BNR...
